Flowing Water Purifier
Flowing Water Sterilization Module
Wavelength: 265~280 nm
Current: 1~8 L/min, DC24V input
Current: 50 T/hr, AC220V / 120V input
Applications: Municipal / Civil water purifying system, etc..
UV LED flowing water sterilization modules with high power UVC 265~280nm LED source inside, SUS 304 housing, E. coli Reduction Rate ≧ 99.99%.
1~8 L/min, 80mW ~ 210mW options, DC24V input, DN8(1/4") DN10(3/8") for water inlet/outlet, ideal for civil water purifying application. More than 50 T/Hr, AC220V input, 3000W options, DN150(6') for water inlet/outlet, ideal for municipal waste water purifying system application. IBTLED provides our customers more solutions based on different designs and applications, for customized services, please kindly contact our sales for support.
| Picture | Current | Inlet/Outlet connector | Power Input | Wavelength | Radiant Power | Operating Pressure | Datasheet |
|---|---|---|---|---|---|---|---|
|

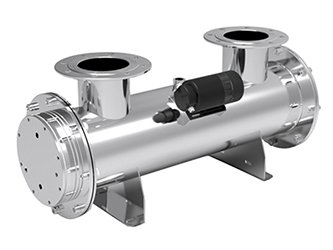

≧50 L/Hr | DN150(6') | AC 220V / AC120V | 265~280nm | 3000mW | Municipal | Download |
 |

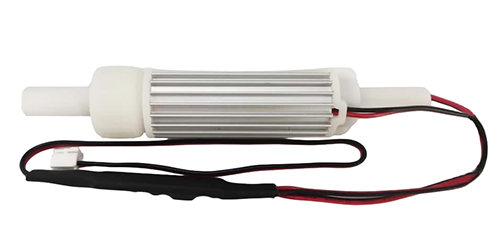

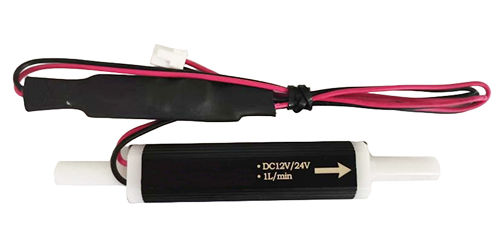

1 L/min | DN8(1/4") | DC24V / DC12V | 265~280nm | 80mW | 0.6 Mpa | Download |
 |
2~8 L/min | DN10(3/8") | DC24V | 265~280nm | 80~140mW | 2.08 Mpa | Download |

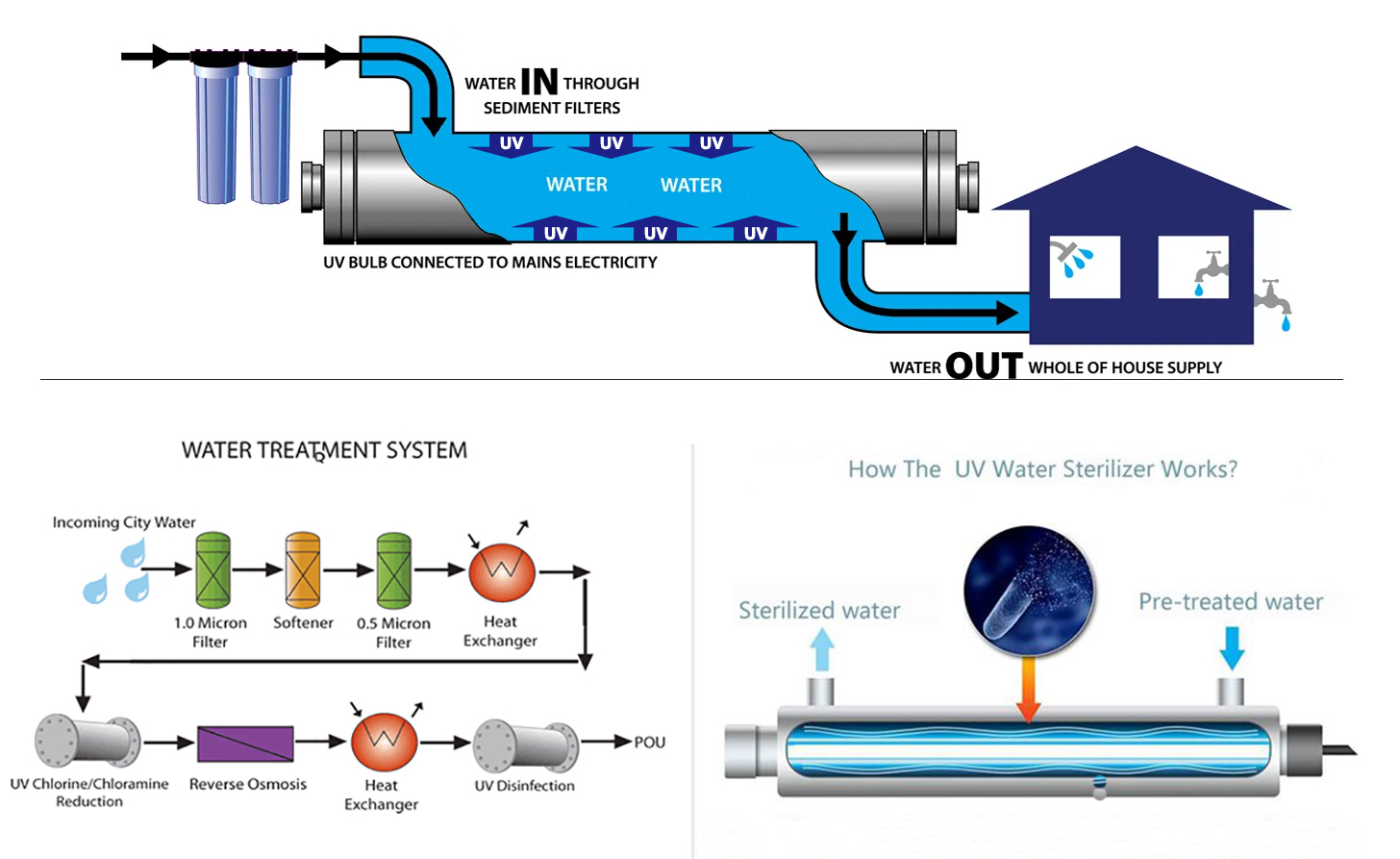

The ultraviolet treatment process is extremely quick physical process. Ultraviolet light mutates and / or degrades DeoxyriboNucleic Acid (DNA). When the DNA is damaged, the organism becomes to unable function because its structure are garbled or missing. An organism that has no structures can not function and be reproduced, so can not cause infection. It is rendered harmless and eventually dies. In the UV disinfection process, water is purified as it runs through a stainless steel chamber (also called "reactor") that contains deep UV source, as the water flows pasts the source, the microbe in the water receive a lethal dose of UVC light and Its DNA gets damaged and it eventually dies.
