UV LED Modules
UV LED mounted on PCB
Wavelength: UVC LED / UVB LED / UVA LED
Copper PCB: 1.5 mm thickness
Applications: Industrial UV curing lighting for 3D printing, coating, inking, coating, adhensives etc..
UV LED Modules with single LED or multiple LEDs mounted on PCB, copper / aluminum material, package in 3535 / 6868 available, UVC 230nm 255nm 265nm 275nm 280nm, UVB 295nm 308nm 311nm, 320nm, UVA 325nm 340nm 345nm 355nm 360nm 365nm 385nm 395nm 405nm optional. 60degree beam angle for standard product, 30 / 120 degree beam angle available, providing our customers more solutions based on different designs and applications, for customized services, please kindly contact our sales for support.
| Picture | Copper PCB Size | package size | LED Qty | Wavelength | PCB Drawing | PCB Dimension |
|---|---|---|---|---|---|---|
|
50* 38* 2.0mm | 6868 | 20pcs / 4P & 5S | UVC UVB UVA | ||
 |
55* 23* 2.0mm | 6868 | 12pcs / 4P & 3S | UVC UVB UVA | ||
 |

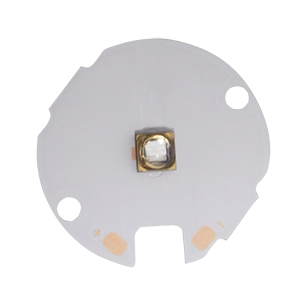

Φ20* 1.5mm | 3535 / 6868 | Single LED | UVC UVB UVA | ||
 |

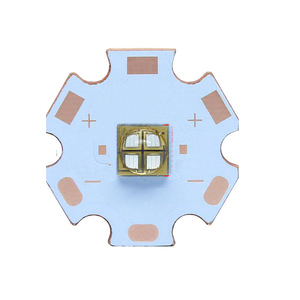

Φ22* 1.5mm | 3535 / L6868 / L1212 | Single LED | UVC UVB UVA |
UV curing refers to a special way in which coatings, inks and adhesives are cured or dried using “energy” from UV light sources, rather than conventional heat. In effect, the ultraviolet light spectrum in a UV lamp interacts with specially formulated chemistries to cure materials--typically more quickly, using less energy and thereby at lower cost than by other methods. In addition, UV is considered environmentally friendly since most of the solvents in inks, paints, adhesives and coatings can be eliminated.
